Product information

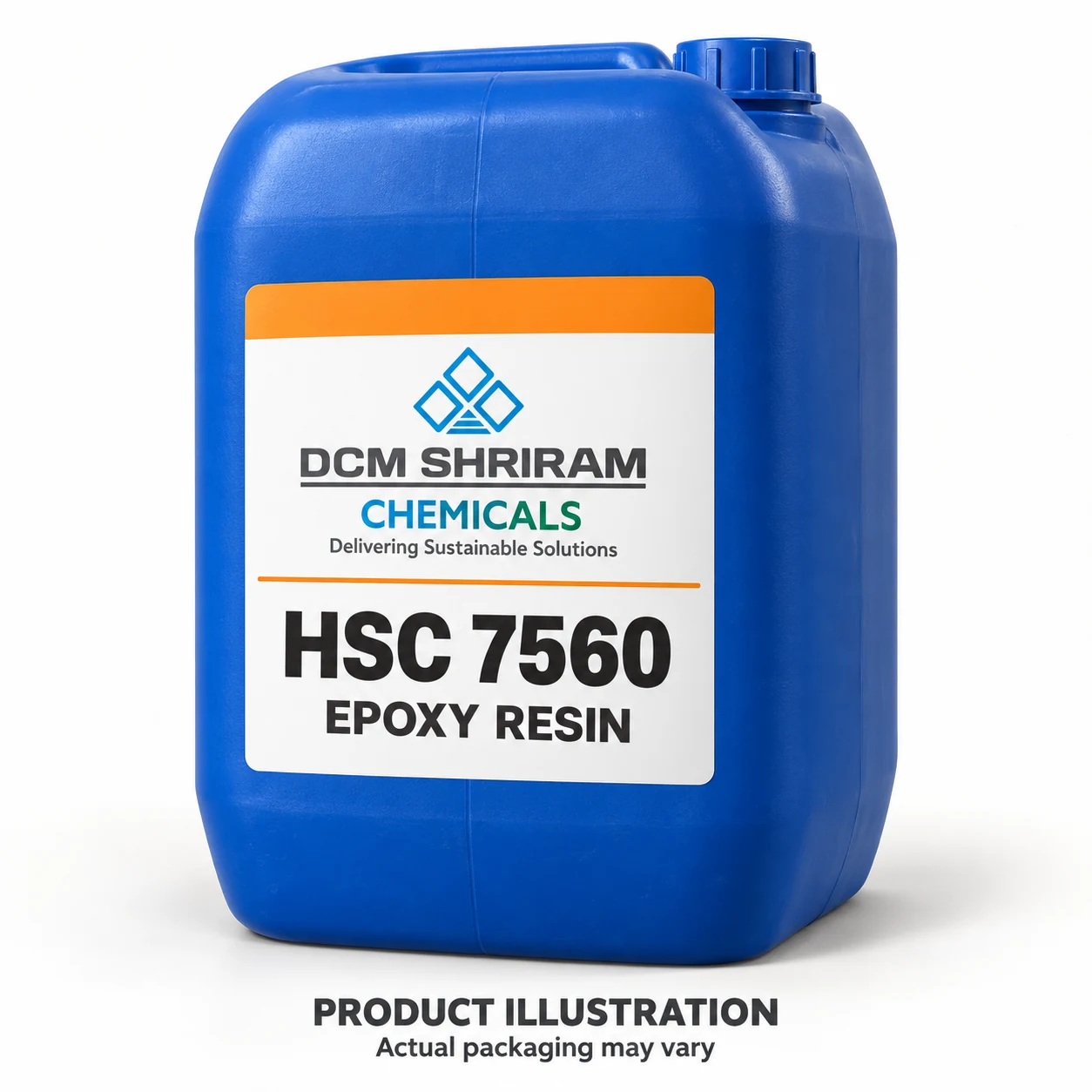

HSC 7560 Epoxy Resin
Low-viscosity modified epoxy resin documented with HSC 8232 for electrical casting, potting and encapsulation.
Get quotationAbout this product
HSC 7560 is a modified epoxy resin for electrical potting and casting. The manufacturer’s HSC 7560/HSC 8232 technical sheet describes a system for low-voltage electrical and electronic components, including ignition coils, capacitors and rectifiers. Low mixed viscosity supports filler loading in the documented formulation. When enquiring with Covai Seenu, specify the component being encapsulated, the system you require and the quantity. The referenced hardener is HSC 8232; its availability and the complete formulation must be confirmed separately.
Applications
Electrical casting and potting Encapsulation of low-voltage electrical and electronic components Manufacturer-listed examples include ignition coils, capacitors and rectifiers.
Key features
Clear modified liquid epoxy resin Resin viscosity at 25°C: 1,300-1,800 mPa·s Resin epoxy equivalent weight: 230-240 g/eq Documented system hardener: HSC 8232
Handling and safety
Read the current manufacturer technical data sheet and safety data sheet for the exact resin and hardener before use. Follow the specified formulation, handling and storage requirements. Suitability depends on the complete system and application conditions.
